Modix BIG-120Z

  • – DIY self-assembly kit
  • – XL print volume of 600 x 600 x 1200 mm
  • – Z axis guides, HIWIN MGW Linear Rails
  • – Duet 2 Wifi, 32Bit controller developed by Duet3D
  • – Reprap Firmware developed and supported by Duet3D
  • – 7 inch touchscreen made by Duet3D
  • – Dual print head
  • – E3D Titan Aero extruder with E3D Volcano hotend
M120Z
$7,500Modix
Request a Quote

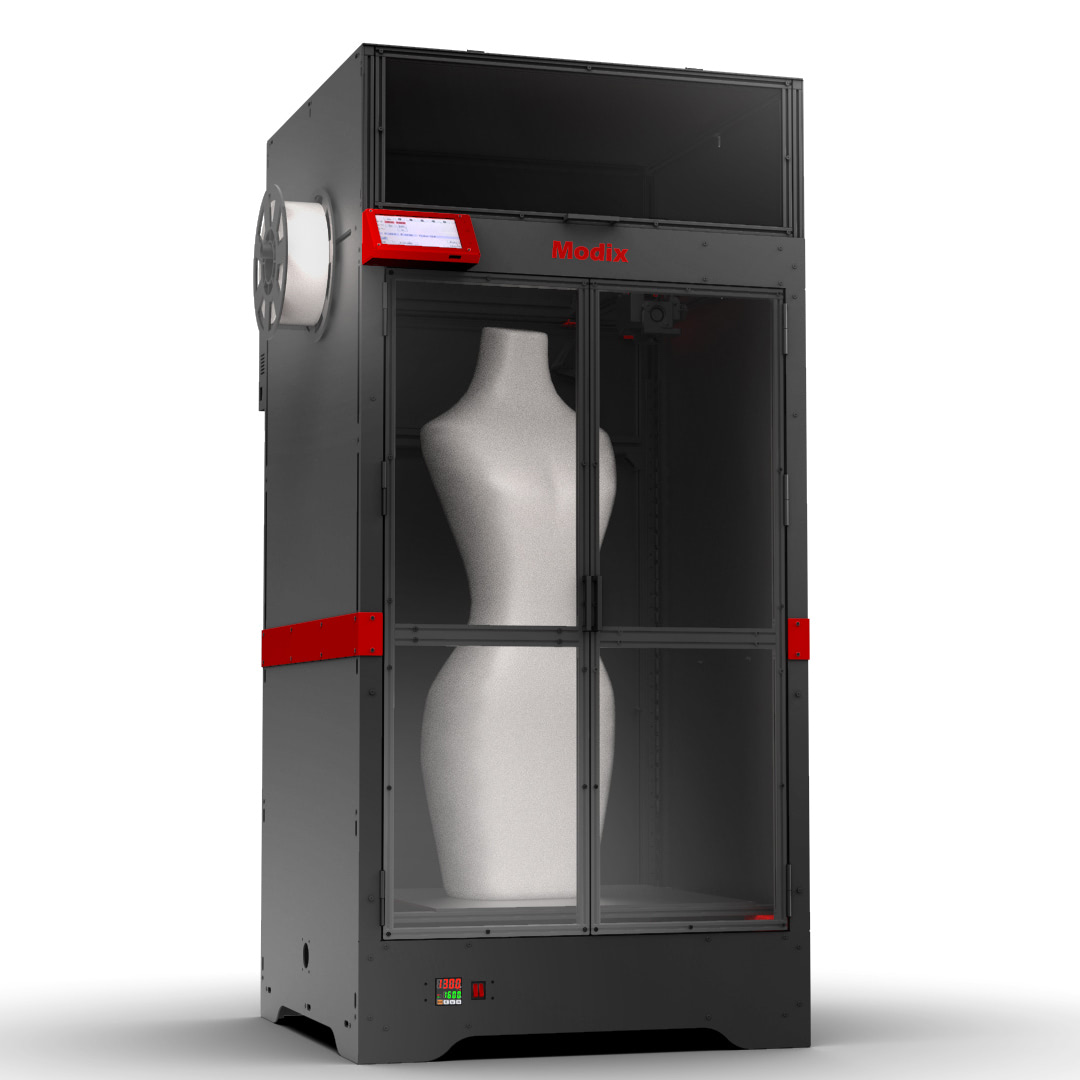

The closed enclosure of the BIG-120Z is made of aluminum composite panels and polycarbonate doors. It incorporates a premium motion system including HIWIN motion rails, Gates timing belts and IGUS signal cables. This is a smart 3D printer providing several key reliability features including power-off resume, filament runout sensor, 120 probing points based automatic bed leveling, stall detection and more. The manufacturer offers an active air filter device as an add-on.

The BIG-120Z is in its mechanics very similar to the 120X V3 model that Modix released earlier in 2020. With more z-space, the company aims at the needs that manufacturers of tall products have, such as the fashion and display advertising industry. This build volume of (XYZ) 600 x 600 x 1200 mm enables to print large objects in one part – and eliminates the need of a lengthy post process, which can both be cost and time consuming.

Modix BIG-120Z specifications

  • Company: Modix
  • Application: Displays, Fashion, Mold Making, Prototyping
  • Industry: Advertising, Fashion, Art, Automotive, Construction, Consumer products, Education, Sign and graphics
  • Technology: FFF FDM
  • Printer type: Large scale, Filament deposition
  • Year: 2020
  • Assembly: DIY Kit

Materials

  • Materials: PLA , PETG, PVA, ABS, ASA, PC, Nylon, TPU/TPE, Woodfil, Copolyester, Corbon composite
  • Material system: Open material system
  • Print size metric: 600 x 600 x 1200 mm
  • Print size imperial: 23.6 x 23.6 x 47.2 inches

Properties

  • Diameter: 1.75 mm
  • Layer thickness: 40 - 800 Microns
  • XYZ accuracy: 4 x 10 x 0.5 Micron
  • Closed print chamber: Yes, fully enclosed
  • Feeder system: Direct
  • Extruder: Dual
  • Max. extruder temp.: 572 °F / 300 °C
  • Print bed details: Heated bed, PEI surface
  • Max. bed temp.: 248 °F / 120 °C
  • Bed leveling: Fully automatic
  • Display: LCD
  • Connectivity: SD card, USB cable. WIFI is optional
  • Camera: Optional

Requirements

  • Slicing: Cura, Simplify3D, Slic3r

Dimensions (XYZ) & weight

  • Dimensions metric: 800 x 800 x 2000 mm
  • Dimensions imperial: 31.5 x 31.5 x 78.7 inches
