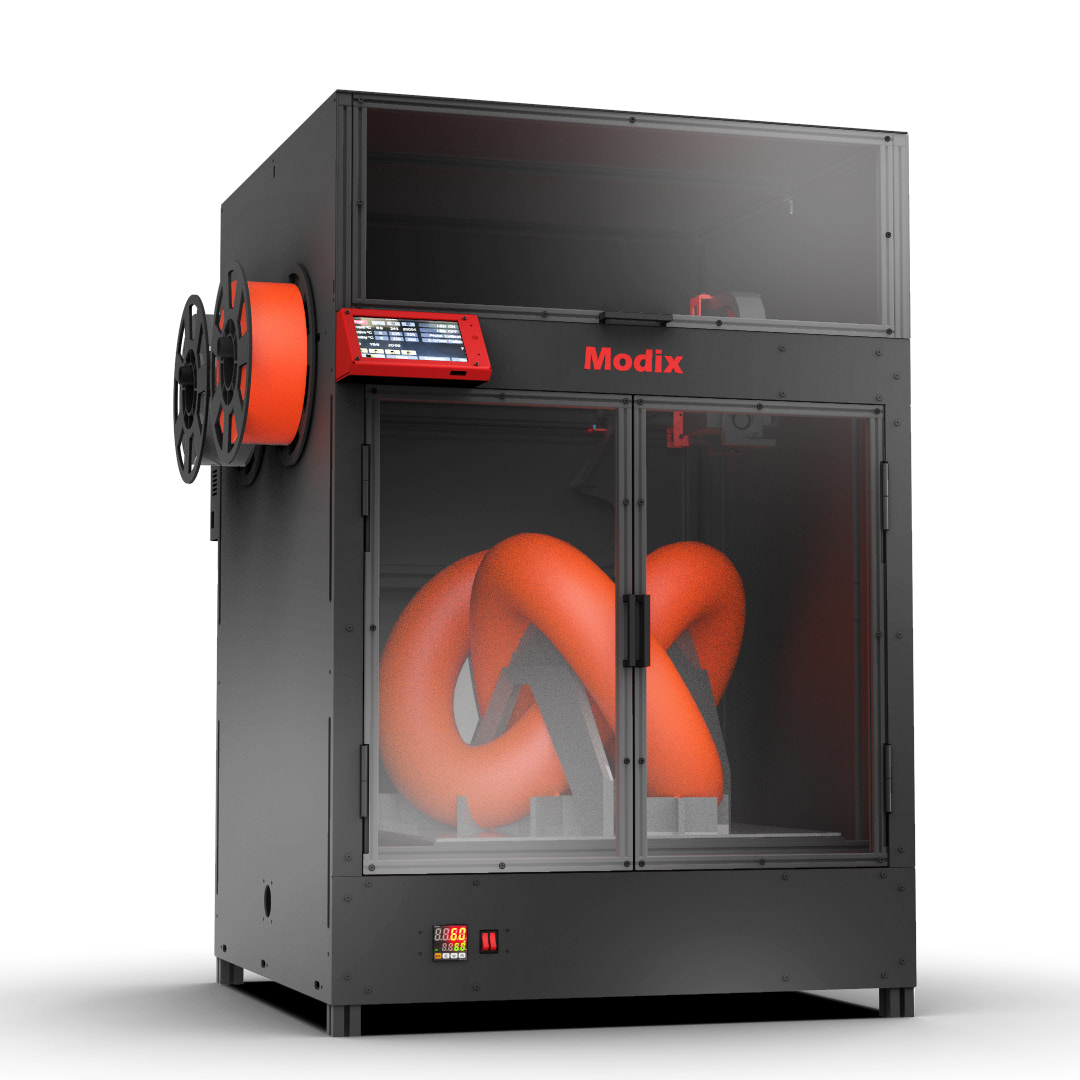

Modix BIG-60

  • – DIY self-assembly kit
  • – Large print volume of 600 x 600 x 660 mm
  • – Duet 2 Wifi, 32Bit controller developed by Duet3D
  • – Reprap Firmware developed and supported by Duet3D
  • – 7 inch touchscreen made by Duet3D
  • – E3D Titan Aero extruder with E3D Volcano hotend
Modix_60Big
$4,900Modix
Buy Now

Modix BIG-60 Version 3 represents a major leap forward with regards to the printer reliability, print quality, ease of assembly and readiness to future advanced updates.

In contrary to V2, the new dual print head configuration in V3 allows dual direct drive which improves the accuracy of the secondary print head. Additionally, V3 features a better E3D metal Aero extruder vs. the older plastic Titan extruder.

Modix BIG-60 specifications

  • Company: Modix
  • Application: Prototyping, Research and Development, Restoration
  • Industry: Automotive, Consumer products, Education, Entertainment
  • Technology: FFF FDM
  • Printer type: Filament deposition
  • Year: 2020
  • Assembly: DIY Kit

Materials

  • Materials: PLA , PETG, PVA, ABS, ASA, PC, Nylon, TPU, Woodfil, Carbon composite
  • Material system: Open material system
  • Print size metric: 600 x 600 x 660 mm
  • Print size imperial: 23.6 x 23.6 x 26 inches

Properties

  • Diameter: 1.75 mm
  • Layer thickness: 40 - 800 Microns
  • XYZ accuracy: 4 x 10 x 0.5 Micron
  • Closed print chamber: Optional
  • Feeder system: Direct
  • Extruder: Single
  • Max. extruder temp.: 572 °F / 300 °C
  • Print bed details: Heated bed, PEI surface
  • Max. bed temp.: 248 °F / 120 °C
  • Bed leveling: Fully automatic
  • Display: LCD
  • Connectivity: SD card, USB cable. WIFI is optional
  • Camera: Optional

Requirements

  • Slicing: Cura, Simplify3D, Slic3r

Dimensions (XYZ) & weight

  • Dimensions metric: 900 x 950 x 975 mm
  • Dimensions imperial: 35.4 x 37.4 x 38.4 inches
